Jaw crusher for sale
Are you looking for a jaw crusher that can easily process hard materials like granite or basalt into high-profit aggregates without frequent breakdowns? You’ve come to the right place.
Our jaw crusher is the most widely used primary crusher in quarrying, mining and construction waste recycling applications. Designed to crush the hardest rocks and ores, it can crush 1000 mm raw materials to less than 400 mm so that the materials can enter the secondary and fine crushing stage. In addition to stationary jaw crushers, portable and crawler versions are also available.
Capacity: 45-1510 t/h
Max. feed Size: 1200 mm
Why choose BETTER ENGINEERING jaw crusher?
Superior Durability & Long Service Life
Heavy-duty steel construction & premium wear-resistant parts reduce maintenance costs and downtime.
Smart Design for Maximum Efficiency
Optimized crushing chamber geometry ensures higher output with lower energy consumption (save up to 20% on operating costs vs competitors).
Custom-Tailored Solutions
We adjust crusher parameters (feed size, capacity, discharge settings) to match your exact material and production goals — no “one-size-fits-all” waste.
Working in mining, recycling, or construction?
Stop guessing which jaw crusher model fits your site. Simply provide us with:
What material are you crushing?
What is your required output size and hourly production capacity?
What is your budget range?
Our engineers will match you with the optimal jaw crusher for maximum ROl – no overpaying for unneeded features.
How does a jaw crusher works?
Raw material is fed into the jaw crusher’s top opening (feed opening) between two jaw plates. Oneplate is stationary (fixed jaw), while the other moves in an elliptical motion (dynamic jaw).
As the dynamic jaw presses against the fixed counterpart, the trapped material is compressed andfractured. This crushing action breaks down large chunks of rock or debris. Smaller pieces falldownward through the gradually narrowing gap (crushing chamber) as the dynamic jaw retreatsThe distance between the jaws at their closest point (discharge setting) determines the finalparticle size of the crushed material exiting the bottom.
The cycle repeats continuously to crush the feed material.
Jaw crusher technical specifications
| Model | Feed Opening Size (mm) | Max. Feeding Size (mm) | Adjustable Range of Output Size (mm) | Capacity (t/h) | Power (kw) | Weight (t) |
|---|---|---|---|---|---|---|
| PE250×400 | 250×400 | 200 | 20-50 | 5-20 | 15 | 2.9 |
| PE400×600 | 400×600 | 350 | 40-100 | 15-60 | 30-37 | 6.8 |
| PE500×750 | 500×750 | 425 | 50-100 | 40-100 | 45-55 | 11.2 |
| PE600×900 | 600×900 | 480 | 65-160 | 60-140 | 55-75 | 16.5 |
| PE750×1060 | 750×1060 | 630 | 80-150 | 80-230 | 90-110 | 29 |
| PE900×1200 | 900×1200 | 750 | 95-165 | 140-320 | 110-132 | 54.5 |
| PE1000×1200 | 1000×1200 | 850 | 105-185 | 180-400 | 160-200 | 56.5 |
| PE1200×1500 | 1200×1500 | 1020 | 150-300 | 250-900 | 220-250 | 99.6 |
| PEX150×250 | 150×250 | 125 | 10-40 | 1-3 | 5.5 | 0.85 |
| PEX150×750 | 150×750 | 125 | 12-45 | 5-16 | 15 | 3.8 |
| PEX250×750 | 250×750 | 210 | 25-60 | 10-40 | 22-30 | 5 |
| PEX250×1000 | 250×1000 | 210 | 25-60 | 15-50 | 30-37 | 6.8 |
| PEX250×1200 | 250×1200 | 210 | 25-60 | 20-60 | 37-45 | 8.5 |
| PEX400×1200 | 400×1200 | 320 | 35-95 | 28-95 | 45-55 | 11.7 |
Want to talk? Reach out to our experts
Contact UsFrequently asked questions
FAQs for jaw crusher

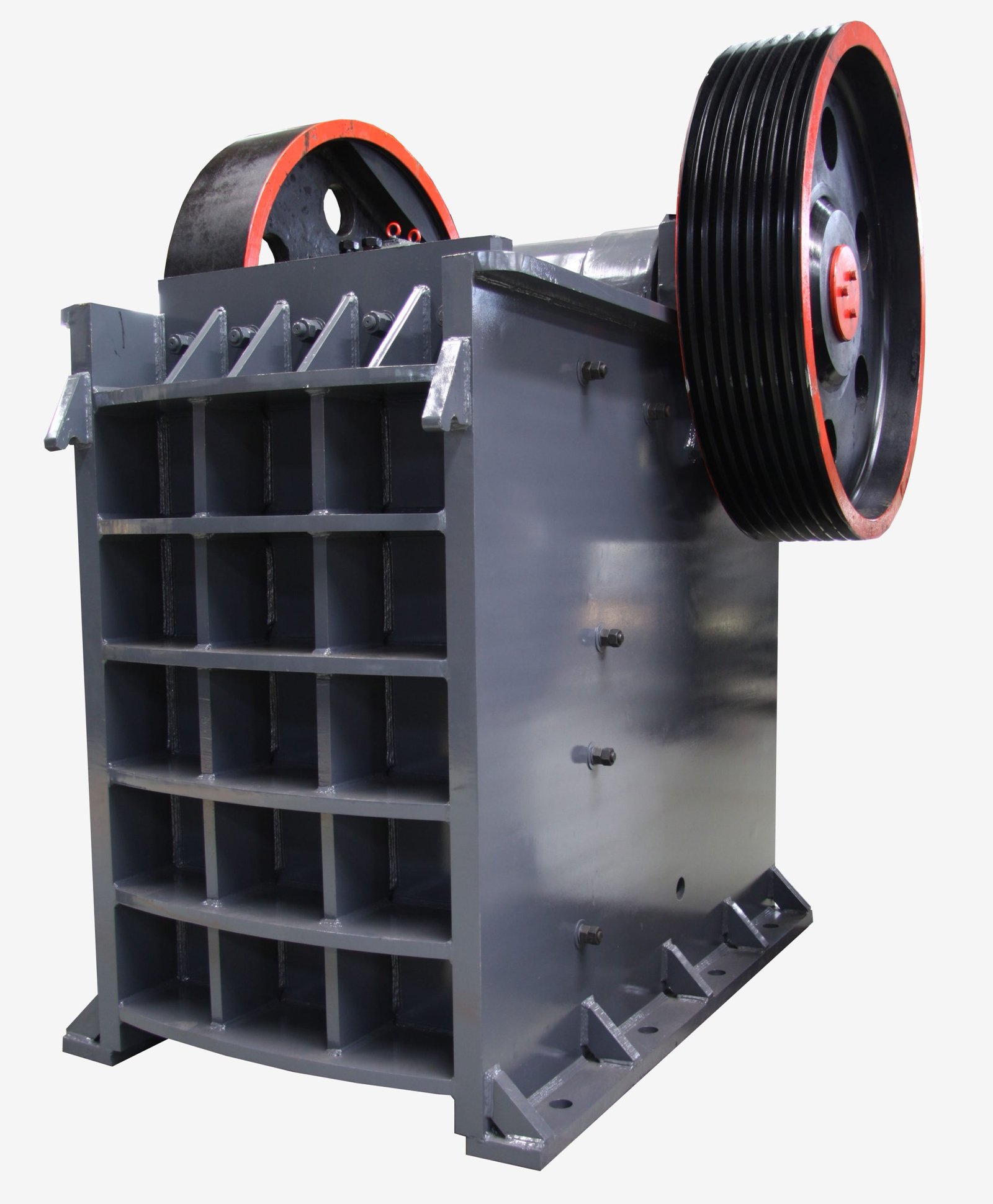

What is jaw crusher?
A jaw crusher is a sturdy machine that crushes rocks and ores between two jaws—one fixed and one moving. It’s commonly used in mining, construction, and recycling to break down hard materials like granite and concrete. By adjusting the gap between the jaws, you can control the output size.
Simple in design but powerful in performance, it’s a go-to choice for primary crushing.
How to choose the right jaw crusher size?
Choose a jaw crusher where the gape width is 20–30% larger than your max feed size (e.g., 900mm gape for 700mm rocks). Match capacity to your hourly tonnage (e.g., 150 TPH requires ~750×1060mm for granite). Prioritize adjustable CSS (e.g., 50–200mm) for flexible output.
Wear & spare parts for jaw crusher
We offer high-quality parts compatible with a wide range of jaw crusher models. Our product line includes durable jaw plates and cheek plates, crafted from 18%Mn and 22%Mn alloys with 2%–3% chromium for enhanced strength and wear resistance.
